Check the thermal envelope first
Before selecting a profile, establish whether the window separates a heated room from outdoors. For a thermal envelope, select a thermally broken system and calculate the complete window.
REYNAERS ALUMINIUM / Non-insulated aluminium windows
ConceptSystem 59Pa

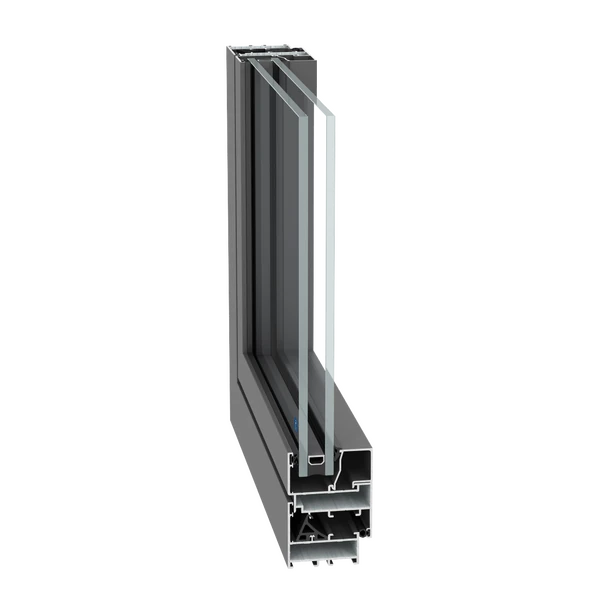

ConceptSystem 59Pa Functional is a non-insulated window system. Official cutaway, 50 mm frame, 4–35 mm glazing and application limitations.
SPECIFICATIONS
ConceptSystem 59Pa / Functional
| Frame depth | 50 mm |
|---|---|
| Vent depth | 59 mm |
| Frame–vent depth | 59 mm |
| Min. frame–vent sightline, inward opening | 85 mm |
| Vent glazing thickness | 4–35 mm |
| Rebate height | 14 mm |
| Air tightness | 4 (600 Pa) |
| Water tightness | E750 (750 Pa) |
| Wind load resistance | C5 (2000 Pa) |
| Acoustics Rw(C;Ctr) | 44(−2;−4) dB |
| Burglar resistance of tested configuration | RC2 |
What these values apply to
The manufacturer describes ConceptSystem 59Pa as a non-insulated system developed for warm climates. It is not an insulated external window solution for a heated home in Kharkiv: the intended application requires a separate check. Geometry and classes in the table follow the Ukrainian and global Functional sheets. Those technical sheets do not state Uf or Uw; we do not substitute the glazing Ug value. RC2 and weather performance depend on the tested configuration.
Performance depends on dimensions, profile combinations, hardware and glazing. Each opening requires its own specification; catalogue maxima are not a guarantee for every element.
The Ukrainian and global Functional sheets agree on the listed figures. Neither sheet specifies Uf or Uw for this non-insulated system.
Global technical data ↗Ukrainian technical data ↗Manufacturer’s documents (UA) ↗How to read profile sections ↗
Variant availability, hardware and delivery terms in Ukraine must be confirmed for the project. A catalogue listing does not imply stock availability.
DESIGN CHECKS
From a profile to a working element.
Glazing does not insulate the frame
The 4–35 mm range describes the permitted vent infill thickness. An efficient insulating glass unit does not by itself turn a non-insulated profile into a thermally broken frame.
Weather sealing and security
E750, C5 and RC2 are not universal guarantees for any size or hardware. Coordinate the layout, junctions, glazing and actual specification together.
